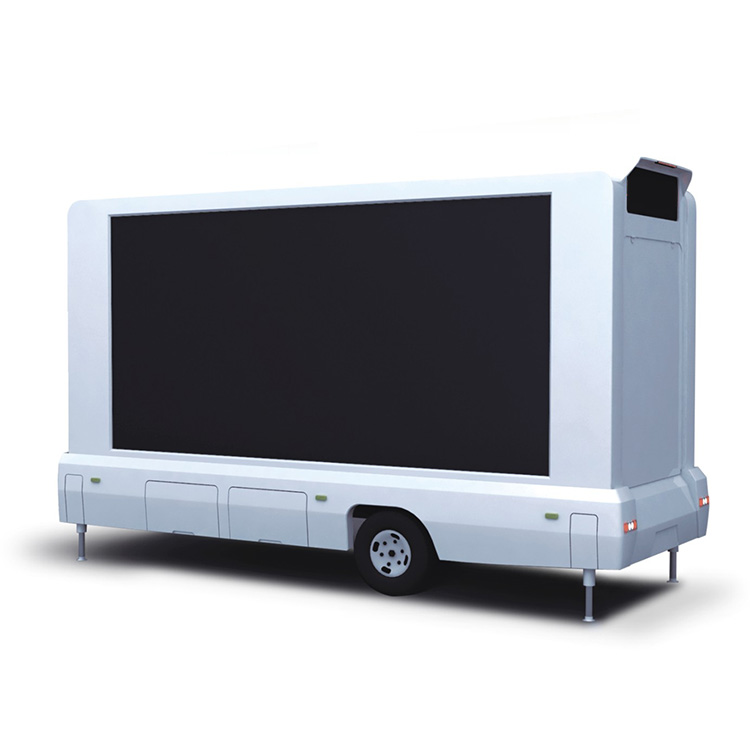

15ft led container-without chassis

In overseas markets, led container are in a stage of rapid development and growth. At present, the cost of led container vehicles made in China is about 30%-50% of similar overseas products. This allows us to have a larger price.
send email to us

Products Details

In overseas markets, led container are in a stage of rapid development and growth. At present, the cost of led container vehicles made in China is about 30%-50% of similar overseas products. This allows us to have a larger price. Competitive advantages, and the national “One Belt, One Road” policy is "escorting us" to help us successfully develop overseas markets; A large number of outdoor LED media operators in overseas markets continue to emerge, in the continuous technological innovation, price decline and huge potential market Under the current situation, the use of led container will become more common, not only in public life and commercial activities, but also in every aspect of our lives. Under this promotion, the led container industry will gain more development opportunities and maintain a positive trend of vigorous development. However, there are still many countries and regions that prohibit the import of powered chassis from other countries. In the face of this situation, our Jingchuan company designed and produced this unpowered chassis 15ft led container-without chassis（Model：E-TW4800）, specifically for those Services for regional customer groups that can’t import power chassis..

Model

E-TW4800（15ft led container-without chassis）

Hydraulic Lifting System
Hydraulic Lifting  System Lifting Range 2000mm,bearing 3T
Wing-against Level Against Level 8wind after screen lift up 2000mm
Supporting leg Stretch distance 300mm

Silent Generator Group
Power 12KW Number ofcylinders Water-cooled inline 4-cylinder

LED Screen
Screen Size 5120mm*2400mm Dot Pitch P3/P4/P5/P6
Lifespan 100,000hours

LED bar scree
Screen Size Side led：5120×480mmRear led：1280mm×1760mm Dot Pitch 10 mm
Dot Pitch 10 mm Brightness ≥5000cd/ m²
Lifespan 100,000hours

Roller light box
Canvas size 5000mm×1500mm Roller Diameter 100 mm
Motor Power ≥80W Control modes Intelligent remote

Power parameter

Input Voltage

Three-phase five-wire 380V

Output Voltage

220V

Current

30A

Average power consumption

0.5kwh/㎡

Multimedia Control System
Video Processor Support 8-way signal input,4output,fluent video source switching
Media player with various kinds of common used video connector, be available for PC, camera and etc.

Sound

 120W

Speaker

 200W
Custom production, whatever you want This 15ft led container-without chassis is equipped with a high-definition outdoor LED full-color screen, with its own generator power supply system and multimedia playback systems. This model can be customized according to customer needs. For example, the large LED screen can choose single-sided lifting or double-sided lifting; the box screen can choose single-sided screen or three-sided screen, and the screen area can also be customized, and the same type E-TW3360 (screen area about 7 square meters) LED advertising vehicle is available.
