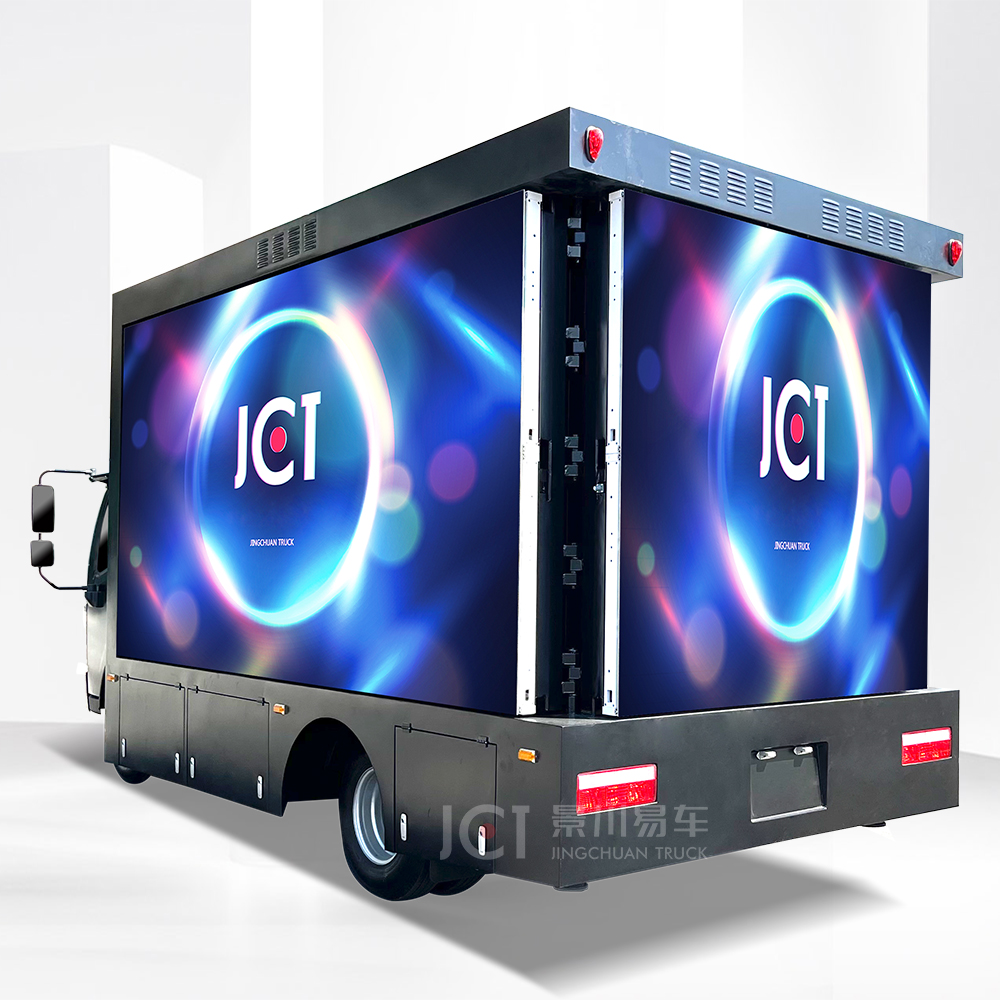

In 2022, JCT launch a new type of LED advertising vehicle: E-3SF18. This E-3SF18 LED advertising vehicle has been upgraded in the previous product functions. Each side of the advertising vehicle is equipped with an outdoor high-definition LED screen with a size of 3840mm*1920mm, and the rear of the vehicle is equipped with a screen size of 1920mm*1920mm ,The screen on both sides of the carriage adopts a one-button control side unfolding mode. After the side unfolding, it is perfectly spliced with the rear screen of the carriage to form a whole large screen with a size of 9600mm*1920mm. The ultra-wide screen viewing angle makes the color gamut wider. , the picture is more realistic, the whole E-3SF18 LED advertising vehicle is composed of four parts: truck mobile chassis, large screen system, power supply system and operating system. It is widely used in publicity, product promotion, concerts of enterprises and institutions And all kinds of outdoor publicity activities, etc., are called the magic weapon of modern advertising marketing and saving money. One-button remote control, more convenient operation The operating system of the E-3SF18 LED advertising vehicle adopts a one-key remote control button operation. After the advertising vehicle is parked, the operator only needs to stand on the side of the advertising vehicle and use the remote control to easily complete the lifting and lowering of the four supporting legs of the vehicle. The screens on both sides are unfolded and retracted side by side, and the three-sided screens are turned on and off, making the advertising vehicle safe and convenient to use, and the operation is simple and clear. Seamless splicing on the screen side, reliable performance The 1920mm*1920mm screens on both sides of the advertising car can be unfolded sideways, and spliced with the 1920mm*1920mm tail screen of the carriage to form a whole 9600mm*1920mm large screen. The seamless splicing process eliminates visual gap interference, and the screen display is complete and coherent; The system, the three-sided screen can not only play the same content audio synchronously, but also play different content audio in split screen, the performance is reliable, and the playback content can be switched at will, you can do as you like. Smart led exhibition truck, wide and open Equipped with high-end brand DF Auto as a mobile chassis, with a new body design, a spacious driving space and a wide field of vision, free control of the room temperature: ● Spacious cab ● Noise reduction, sound insulation and vibration reduction design ● Comfortable driving experience ● Audio-visual and temperature control functions improved Mobile and convenient, environmental protection and energy saving The E-3SF18 LED advertising vehicle optimizes and improves the deficiencies of traditional publicity methods. It has strong mobility, three-dimensional realistic images, and a spacious screen. It will surely become a leader in outdoor advertising and an "environmental protection ambassador". The brand power displayed by the enterprise through the advertising vehicle will become larger and larger, and the enterprise energy it conveys will not be underestimated, so as to finally achieve the goal of winning the order and realize the development of the enterprise.

E-3SF18 Specification
Truck chassis
Brand	DF Auto	Dimension	5990x2250x3200mm
Engine:	Isuzu JE493ZLQ3A (75KW/240NM), Euro II	Model:	EM97-101-902J (Type 2 chassis)
Seat	Single row	Total mass	4500kg
Wheelbase:	3308MM, plate spring: 6/6+5	Axle base	3308mm
Tyres:	7.00R16, rear twin	Axle:	Bangle 2.2/ Jiangling 3.5T
Other configuration:	right rudder/air conditioning /190mm frame/liquid brake/power rotation /76L fuel tank /12V
Hydraulic Lifting and Supporting System
Led screen 90 degree hydraulic turnover cylinder		2pcs
Supporting legs	Stretching distance 300mm	4pcs
Silent generator group
Dimension	1260*750*1040mm	Output power	16KW
Generator:	GPI 184ES	Engine:	YSD490D
Voltage and frequency	3 phase, 50HZ, 230/400V, 1500 RPM, rated	Control module:	HGM410
Silent type, black for sound box		No battery, under the air, under the air exhaust smoke;
LED Screen
Dimension	3840mm*1920mm*2sides+1920*1920mm*1pcs	Module Size	320mm(W)*160mm(H)
Light brand	Kinglight	Dot Pitch	5mm
Brightness	≥6500cd/㎡	Lifespan	100,000hours
Average Power Consumption	250w/㎡	Max Power Consumption	750w/㎡
Power Supply	Meanwell	DRIVE IC	ICN2153
Receiving card	Nova MRV316	Fresh rate	3840
Cabinet material	Iron	Cabinet weight	Iron 50kg
Maintenance mode	Rear service	Pixel structure	1R1G1B
LED packaging method	SMD2727	Operating Voltage	DC5V
Module power	18W	scanning method	1/8
HUB	HUB75	Pixel density	27778 Dots/㎡
Module resolution	32*32Dots	Frame rate/ Grayscale, color	60Hz,13bit
Viewing angle, screen flatness, module  clearance	H：120°V：120°、＜0.5mm、＜0.5mm	Operating temperature	-20~50℃
system support	Windows XP,WIN 7，
Power parameter
Input voltage	Three phases five wires 380V	Output voltage	220V
Inrush current	40A	Power	0.3kwh/㎡
Multimedia Control System
Video processor	NOVA	Model	VX600
Luminance sensor	NOVA
Sound System
Power amplifier	Power output:500W	Speaker	Max power consumption:120W*4
